SIMA66 Plain Shank
- CARBIDE, 4 FLUTE BALL NOSE LONG LENGTH
CARBIDE, 4 FLUTE BALL NOSE LONG LENGTH
Contact our sales team to discover all of your pricing options
- Special flute geometry and multiple helix eliminate vibrations
- Excellent performance for Stainless Steels, Mild Steels, Cast Iron, Low/Medium hardness materials under HRc40

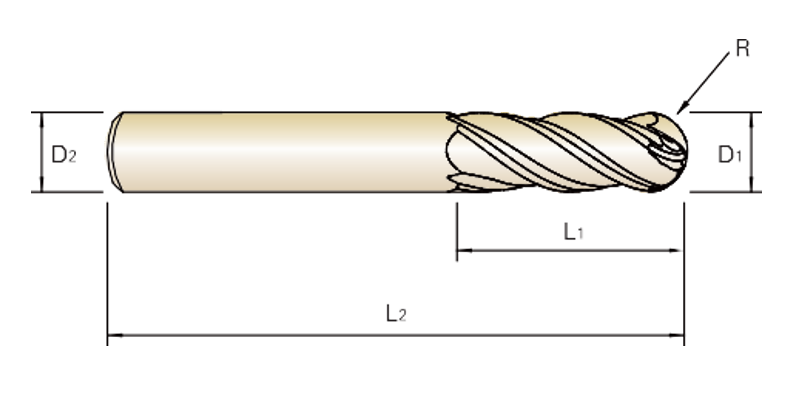

| EDP No. | Radius of Ball Nose R | Mill Diameter D1 | Shank Diameter D2 | Length of Cut L1 | Overall Length l2 |
|---|---|---|---|---|---|
| SIMA66030 | R1.5 | 3.0 | 6 | 8 | 50 |
| SIMA66040 | R2.0 | 4.0 | 6 | 10 | 50 |
| SIMA66050 | R2.5 | 5.0 | 6 | 15 | 60 |
| SIMA66060 | R3.0 | 6.0 | 6 | 15 | 60 |
| SIMA66080 | R4.0 | 8.0 | 8 | 20 | 70 |
| SIMA66100 | R5.0 | 10.0 | 10 | 25 | 75 |
| SIMA66120 | R6.0 | 12.0 | 12 | 30 | 80 |
| SIMA66160 | R8.0 | 16.0 | 16 | 40 | 100 |
| SIMA66200 | R10.0 | 20.0 | 20 | 45 | 100 |
| SIMA66250 | R12.5 | 25.0 | 25 | 50 | 120 |
