SIMA 70 Plain Shank
- CARBIDE, 6 FLUTE LONG LENGTH
CARBIDE, 6 FLUTE LONG LENGTH
Contact our sales team to discover all of your pricing options
- The unique geometry of the variable pitch provides the best chatter free tool for high speed and trochoidal milling
- Excellent performance for Stainless Steels, Mild Steels, Cast Iron, Low/Medium hardness materials under HRc40

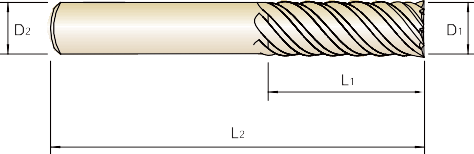

| EDP No. | Mill Diameter D1 | Shank Diameter D2 | Length of Cut L1 | Overall Length L2 |
|---|---|---|---|---|
| SIMA71060 | 6.0 | 6 | 15 | 60 |
| SIMA71080 | 8.0 | 8 | 20 | 70 |
| SIMA71100 | 10.0 | 10 | 25 | 75 |
| SIMA71120 | 12.0 | 12 | 30 | 80 |
| SIMA71160 | 16.0 | 16 | 40 | 100 |
| SIMA71200 | 20.0 | 20 | 45 | 100 |
| SIMA71250 | 25.0 | 25 | 50 | 120 |
